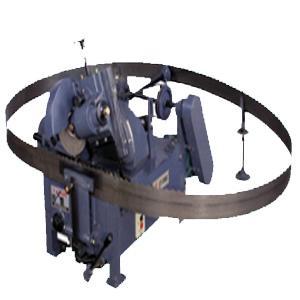

TJ-48AA
自動磨鋸機
產品特性：
◎Designed and engineered for sharpening sawblades with a width range from 2" to 8".
◎The pusher stroke is adjustable by means of a
screw to accommodate tooth pitch variations.
◎The machine is designed standard for sharpening
blades used in hard wood cutting.
◎Furnished standard with an 8" diameter grinding
wheel.
◎1HP drive motor.
規格：
|
型式
|
TJ-48AA
|
|
Range of saw blade width
|
50-203mm(2"-8")
|
|
Range of saw blade pitch
|
19-38mm(3/4"-1 1/2")
|
|
Grinding wheel speed
|
2100/2300RPM(50HZ)
2450/2705RPM(60HZ) |
|
Grinding wheel size
|
203×19×13mm
|
|
Blade feed speed
|
42m/min(50HZ)
|
|
Motor
|
1HP-4P
|
| Dimensions | 640×1080×800mm |
| Packing dimensions | 112×80×97cm(1case) 194×88×97cm(2case) |
|
N.W./G.W.
|
270/350kgs(1case)
540/650kgs(2case) |
